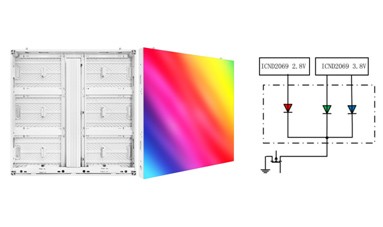

Common Cathode with Energy-Saving Up to 75%

The LED display common cathode energy-saving technology,the current will first pass through the lamp bead, and then reach the IC cathode. Reduce forward voltage drop,reduce on-resistance, such a common cathode power supply can save energy by up to 75%.

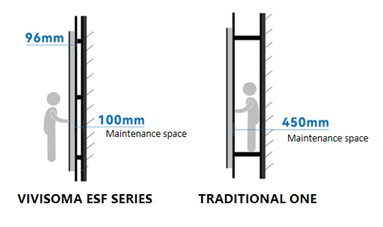

FRONT/REAR INSTALLATION

It allows for the front installation and maintenance, which needs the retention of 100mm space, and the rear installation and maintenance requires the retention of 450mm space. Front installation can save 40% of the steel structure in the installation, and does not need the heavy steel structure frame like the traditional display. Save a lot of material and labor costs.

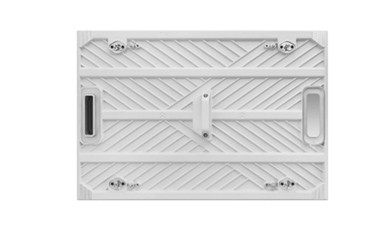

LIGHT AND THIN CABINET BODY DESIGN

Only 26kg/cabinet, and thickness 66mm. but 38kg and 150mm thickness/steel cabinet It is much lighter and thinner than traditional steel cabinet.

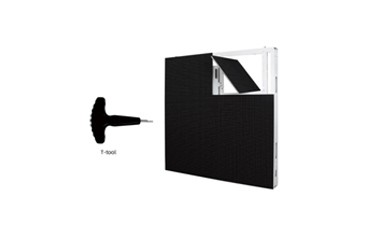

FRONT/REAR maintenance

T-tool for faster and more stable maintenance, the led module can be removed by turning the lock cylinder to open its side lock, it can be taken out directly from front of the display or from back of the led cabinet. Realize the front and rear maintenance of led modules,power suppliers, receiving card,etc.

DUAL WATERPROOF DESIGN

The led module and power connector are independently waterproofed, and the edge is beveled and has the function of removing water. Water-proof rubber is used all around ensures the rainwater never penetrate into the inner PCB board from any direction.

WIDE VISUAL VIEWING ANGLE

The crowd-pleasing optimum viewing the angle of 160° both horizontal and vertical maximizes the effective broadcast reach.
